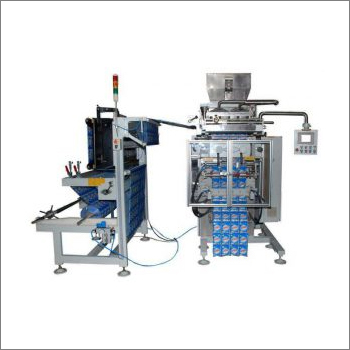

Multi track powder packing machine
1650000.0 INR/Unit
Product Details:
- Application Machine Type: Fully Automatic Multi-Track Powder Packing Machine Application: Designed for high-speed sachet packing of free-flowing and semi-free-flowing powder products. Number of Tracks: 2 / 4 / 6 / 8 / 10 / 12 tracks (customizable as per required output) Filling System: Auger filling system with independent motor control for each track to ensure accurate and consistent dosing. Packing Range: 1 g to 100 g (depending on product characteristics and auger size) Production Speed: Up to 30 60 sachets per minute per track (actual speed depends on sachet size and product) Sachet Type: Three-side seal / Four-side seal / Center seal (as per configuration) Film Type: Laminated roll form (PET/PE, PET/AL/PE, Paper/PE, or equivalent) Film Width: As per number of tracks and sachet size Sachet Dimensions: Length: 50 180 mm Width: 30 100 mm (per sachet) Sealing System: Pneumatic / servo-controlled heat sealing with adjustable temperature control Control System: PLC-based control panel with color touch screen HMI for easy operation and parameter setting Construction: Main frame: Mild Steel with powder coating Product contact parts: SS 304 (SS 316 optional)
- Seals Type Butt sealing
- Type Multi lane powder packing
- Sealing Length 170mm
- Filling Capacity 10 Ton
- Sealing Speed 60 pouch per lane per minute
- Weight 2500 Kilograms (kg)
- Click to View more
X
Multi track powder packing machine Price And Quantity
- 1 Number
- 1650000.0 INR/Unit
Multi track powder packing machine Product Specifications
- 440V /50 HZ Volt (v)
- 440 Volt (v)
- New
- 36000 Pieces/Hour
- Butt sealing
- Multi lane powder packing
- Machine Type: Fully Automatic Multi-Track Powder Packing Machine Application: Designed for high-speed sachet packing of free-flowing and semi-free-flowing powder products. Number of Tracks: 2 / 4 / 6 / 8 / 10 / 12 tracks (customizable as per required output) Filling System: Auger filling system with independent motor control for each track to ensure accurate and consistent dosing. Packing Range: 1 g to 100 g (depending on product characteristics and auger size) Production Speed: Up to 30 60 sachets per minute per track (actual speed depends on sachet size and product) Sachet Type: Three-side seal / Four-side seal / Center seal (as per configuration) Film Type: Laminated roll form (PET/PE, PET/AL/PE, Paper/PE, or equivalent) Film Width: As per number of tracks and sachet size Sachet Dimensions: Length: 50 180 mm Width: 30 100 mm (per sachet) Sealing System: Pneumatic / servo-controlled heat sealing with adjustable temperature control Control System: PLC-based control panel with color touch screen HMI for easy operation and parameter setting Construction: Main frame: Mild Steel with powder coating Product contact parts: SS 304 (SS 316 optional)
- 170mm
- 10 Ton
- 2500 Kilograms (kg)
- 60 pouch per lane per minute
- flexible laminate
- Electric
- 0.2 gm
- silver
Multi track powder packing machine Trade Information
- 2 Week
Product Description
Multi-Track Powder Packing Machine is a high-speed, fully automatic solution designed for accurate and hygienic packaging of free-flowing and semi-free-flowing powder products in sachet form in 2,4,6,8,10 track. Engineered for maximum productivity and consistent performance, this machine is ideal for large-scale manufacturers seeking high output with minimal floor space.Suitable for Packing
-
Milk powder
-
Protein powder
-
Coffee powder
-
Spices & masala
-
Detergent powder
-
Pharmaceutical & nutraceutical powders
-
Chemical powders
Optional Add-ons
-
Servo-driven systems
-
Nitrogen flushing
-
Date/batch coding unit
-
Dust extraction system
-
Online check weigher
-
SS 304 / SS 316 contact parts
Reliable Multi-Track Efficiency
Engineered for high-volume packaging lines, this machine ensures swift and uniform filling across multiple tracks simultaneously. Each track's auger filling system features separate motor control, enhancing dosing precision. Suitable for a variety of powder products, it seamlessly integrates into industrial environments demanding large output with minimal downtime. Flexible lane and track selection enable you to adapt production to specific batch sizes and packaging needs, maximizing productivity.
Customizable Sachet and Packing Range
Adapt to shifting operational requirements with the ability to select between 2 and 12 tracks, designing sachet sizes from 1g up to 100g. The machine accepts laminated roll films and offers multiple sealing styles, including three-side, four-side, and center sealing. With adjustable length and width settings, it's ideal for brands looking to diversify product offerings.
User-Friendly Control and Robust Construction
Manage all crucial parameters through an intuitive PLC-based touch screen interface, enabling real-time monitoring and quick adjustments. Built with a stainless steel contact frame and powder-coated mild steel main body, the machine assures hygienic operation and durability, essential for continuous production environments.
FAQ's of Multi track powder packing machine:
Q: How does the multi-track powder packing machine ensure accurate filling for each sachet?
A: The machine uses an auger filling system with independent motor control for each track. This setup delivers consistent and precise powder dosing, minimizing variance and maximizing accuracy, with a high filling accuracy of up to 0.2 grams.Q: What types of powders can this machine package?
A: It is designed for free-flowing and semi-free-flowing powders, making it suitable for industries such as food, pharmaceuticals, chemicals, and more. The auger system's flexibility supports a wide range of powdered materials.Q: When should I opt for a multi-track packing machine instead of a single-track version?
A: Multi-track packing machines offer significantly higher throughput, ideal for large-scale production environments needing tens of thousands of sachets per hour. They reduce labor requirements and streamline packaging processes for bulk operations.Q: Where can this machine be installed or used effectively?
A: This fully automatic packing machine is suited for factories, packaging lines, and contract manufacturing facilities in industries that handle powder products. Its robust construction and stainless steel contact parts comply with hygiene standards common in food and pharmaceutical sectors.Q: What is the process for changing sachet dimensions or the number of tracks?
A: Operators can adjust sachet length, width, and number of tracks based on production needs by modifying parameters via the PLC touch screen and making necessary mechanical adjustments (such as changing forming parts or film widths). Detailed instructions and support are provided by the manufacturer.Q: How does the machine support different packaging materials and sealing types?
A: It is compatible with various flexible laminated roll films (PET/PE, PET/AL/PE, Paper/PE, etc.) and offers three-side, four-side, and center sealing via adjustable pneumatic or servo-controlled heat sealing, ensuring strong, reliable seals for multiple product types.Q: What are the key benefits of using this multi-track sachet packing machine?
A: Key benefits include high-speed, precise operation, customizable pouch configurations, reduced manpower, improved product hygiene, and consistent quality. Its automatic features and user-friendly HMI make it an efficient addition to any powder processing and packing facility.Tell us about your requirement
